Z-Proto | Djalma Jr.

A zero-dependency, framework-agnostic web component that wraps any UI prototype in a real device shell — presets, zoom, resize, screenshots and one-click Figma capture.

Stop screenshotting your dev server. Z-Proto is a prototyping shell you wrap around any markup to instantly get a believable device frame — complete with macOS-style window chrome, traffic lights and a title bar. It is a single web component with zero dependencies and no framework, so it drops into plain HTML, React, Vue or anything else that renders to the DOM.

Wrap it and you’re done

Load one module from a CDN, nest your prototype inside <z-proto-body>, and the shell handles the rest. No build step, no config file.

<script
  type="module"
  src="https://cdn.jsdelivr.net/gh/djalmajr/z-proto@main/src/z-proto.js"
></script>

<z-proto>
  <z-proto-body title="My App" width="1280" height="800">
    <!-- your prototype -->
  </z-proto-body>
</z-proto>

A device lab in one element

Everything you need to pressure-test a layout lives in the toolbar:

17 device presets across mobile, tablet and desktop, plus a responsive mode for free-form sizing.
Manual width/height inputs with min-width / min-height constraints so a frame never collapses below its usable size.
5 zoom levels (50%–125%) to fit a large frame on screen or inspect detail.
8 drag-to-resize handles on every edge and corner for live resizing.

Capture without leaving the page

Screenshot to clipboard — grab the content area straight into your clipboard via the Screen Capture API, ready to paste anywhere.
Figma capture — flip on the HTML-to-Design flow with ?FIGMA_KEY=<key> in the URL or a figma-key attribute, and send the rendered prototype into Figma as editable layers.

Built for the platform

Theming is pure CSS custom properties, so light and dark modes are a variable swap away. Styles are loaded with import ... with { type: "css" } and applied through adoptedStyleSheets, keeping the shadow DOM clean and fast — no inlined <style> tags, no flash of unstyled content.

The API stays declarative: <z-proto figma-key zoom> configures the shell; <z-proto-body title width height min-width min-height> defines a frame; and two slots let you extend it — <z-proto-header> for content below the toolbar and <z-proto-extras> for controls on the right of the title bar.

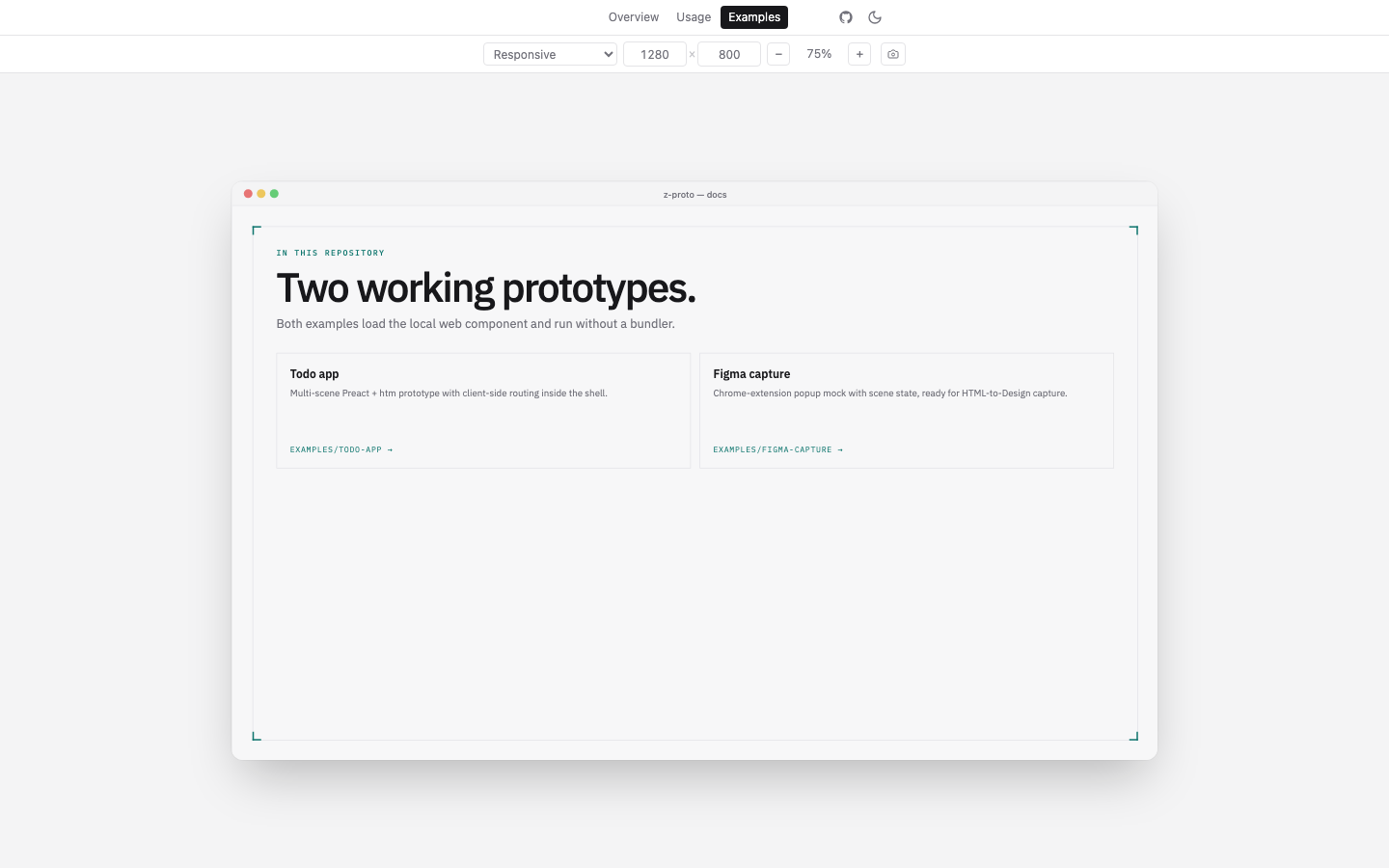

Examples in the box

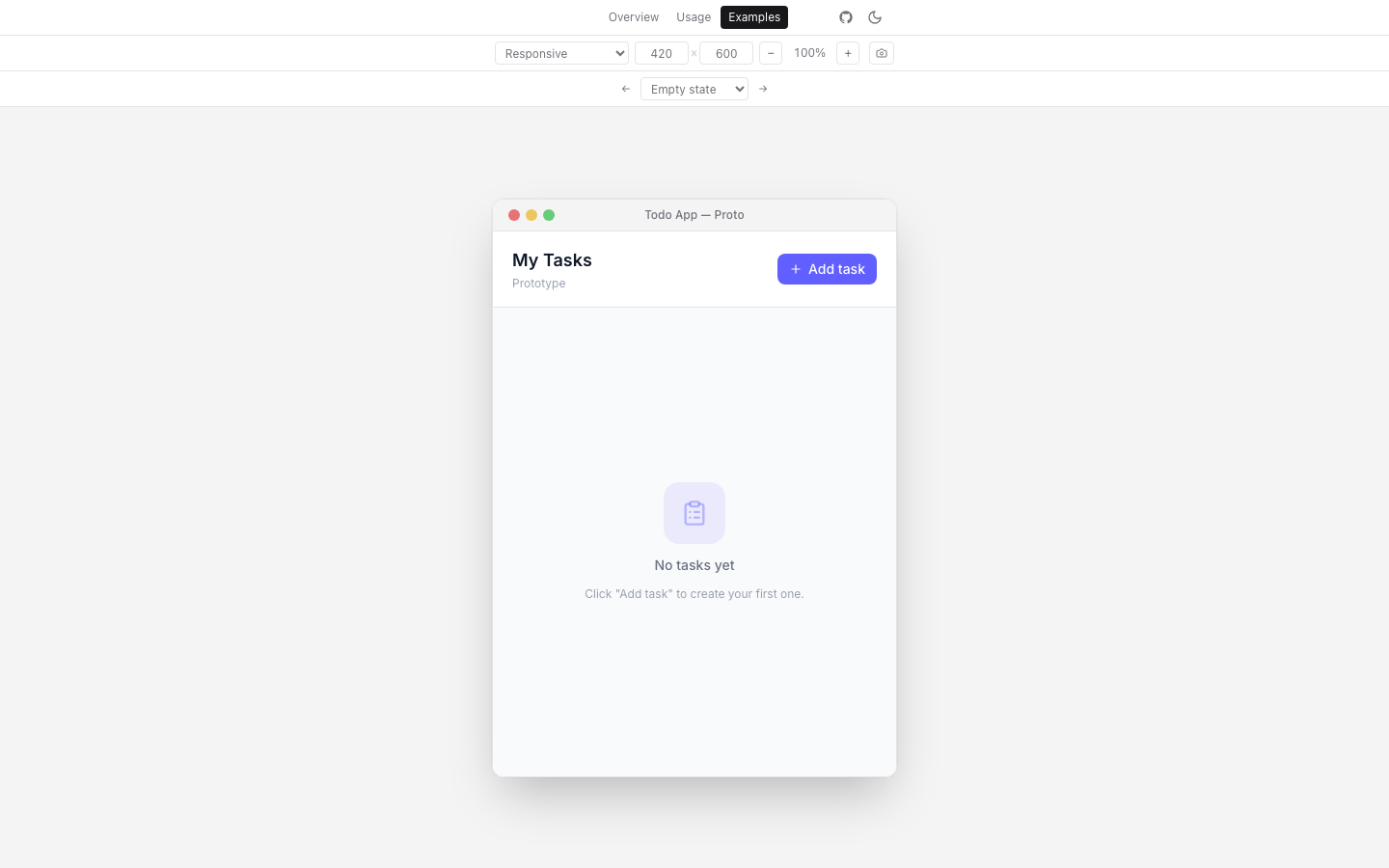

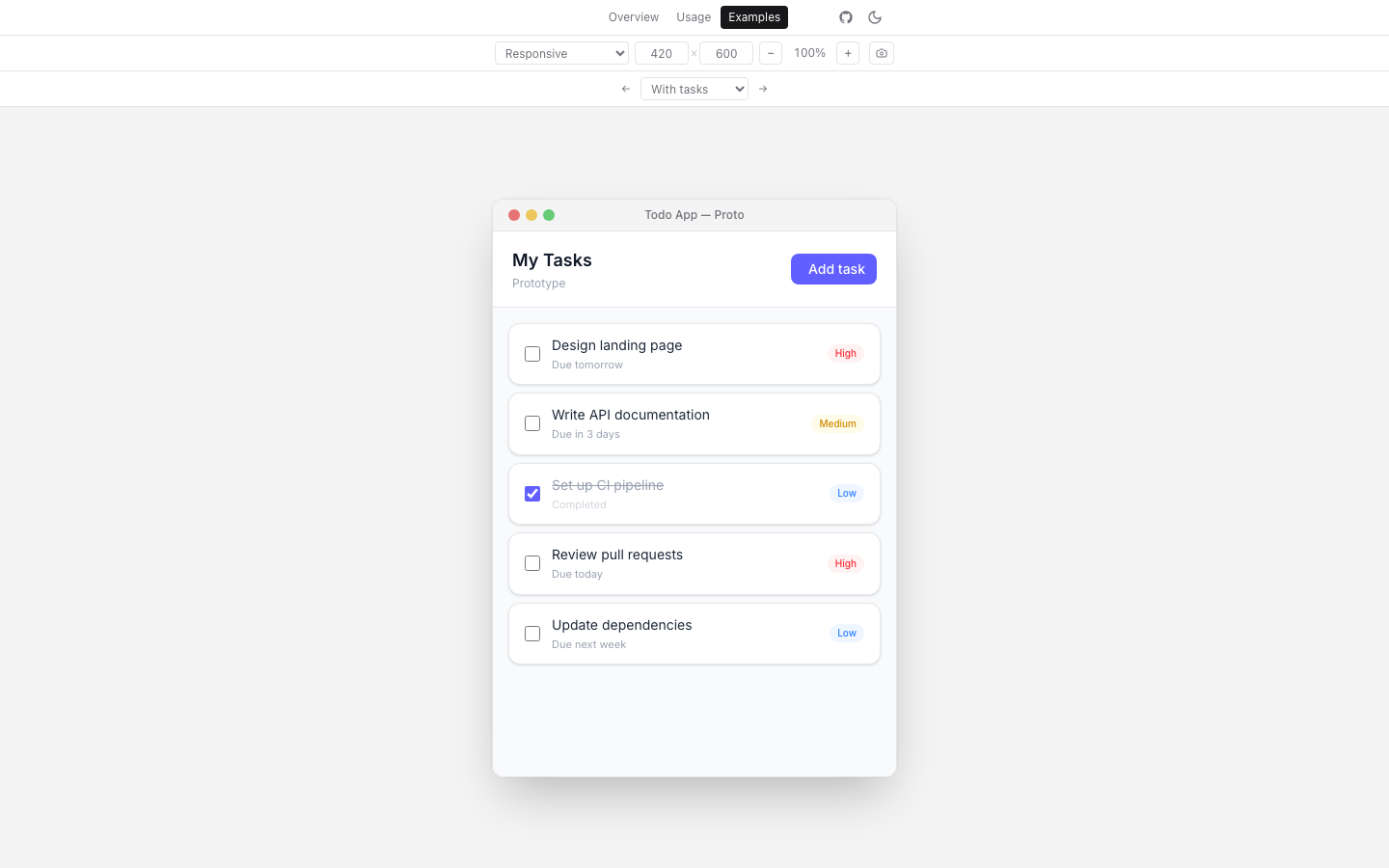

The repo ships two working references: a Figma-capture popup built with htm/preact, and a multi-page todo app using preact-iso with client-side routing — enough to copy from on day one.

Availability

Source: github.com/djalmajr/z-proto

Open source under the MIT license.
